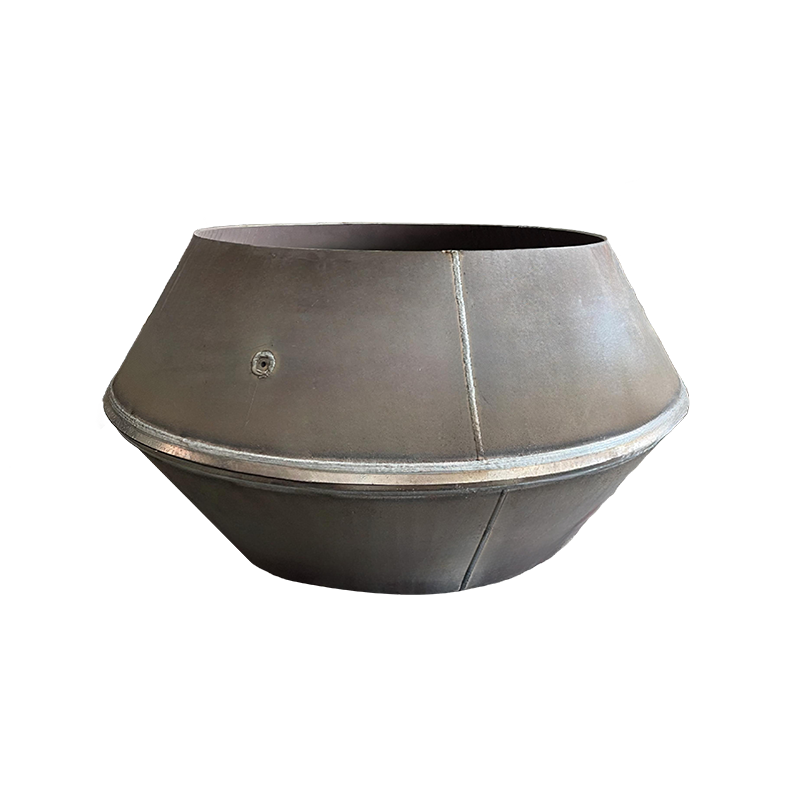

Carbon Steel Structural Parts For Steam Turbine Compensator

Carbon steel structural parts for steam turbine compensator are crucial functional accessories in the steam turbine system. They are mainly used to deal with thermal expansion and contraction and displacement stress caused by temperature changes, mechanical vibrations and other factors during equipment operation, and to ensure the stability and safety of the steam turbine piping system.
This component uses carbon steel as the main material. With its good strength, toughness and processing performance, it can maintain structural integrity in the high-temperature and high-pressure steam turbine operating environment. Its structural design usually includes bellows (or expansion joints), connecting flanges, guide brackets and other parts: the bellows part absorbs the axial, lateral or angular displacement of the pipeline through its own elastic deformation to reduce stress concentration; the connecting flange is precisely connected to the steam turbine piping system to ensure sealing performance; the guide bracket is used to limit the displacement direction of the component to avoid abnormal deformation.
During the operation of the steam turbine, the drastic fluctuation of steam temperature will cause significant thermal displacement of the pipeline. Carbon steel structural parts for steam turbine compensator can effectively alleviate the destructive forces such as pulling and squeezing caused by displacement of the pipeline by dynamically adjusting deformation, and prevent weld cracking, flange leakage and other faults. In addition, after the surface anti-corrosion treatment (such as galvanizing and coating with high temperature resistant coating) of its carbon steel material, the corrosion resistance can be further enhanced and the service life in the steam environment can be extended. The precision machining and installation of this component must strictly follow the technical specifications of the steam turbine system to ensure matching with the pipeline size and accurate calculation of displacement compensation, thus providing reliable guarantee for the efficient and safe operation of the steam turbine.
